How to configure web security in the user base

Step 1: Login to the Tacitine. (If you are configuring the Tacitine for the first time, the default Lan IP is https://192.168.100.1:4433)and default username: admin & Password: admin99

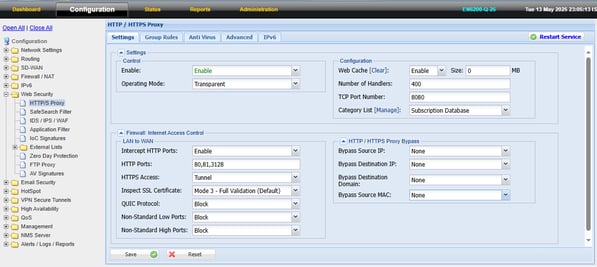

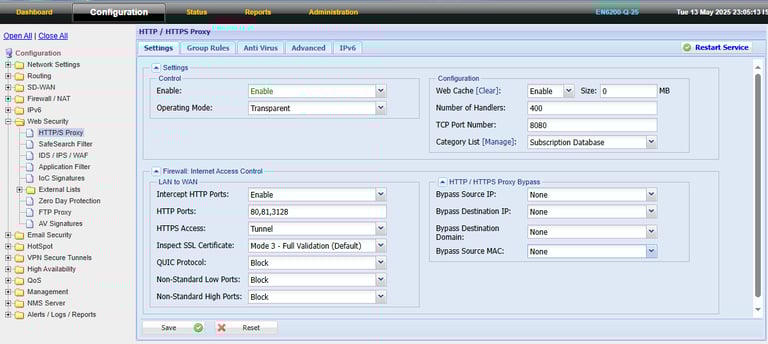

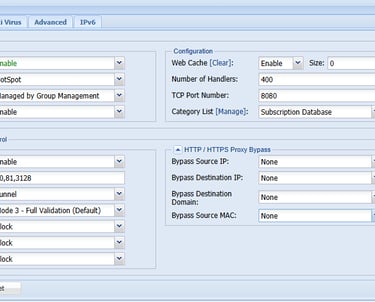

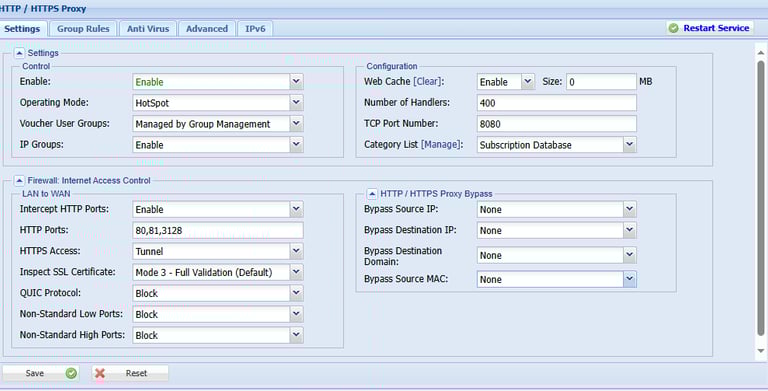

Step 2: Click the Configuration > Web security tab > HTTP/S Proxy

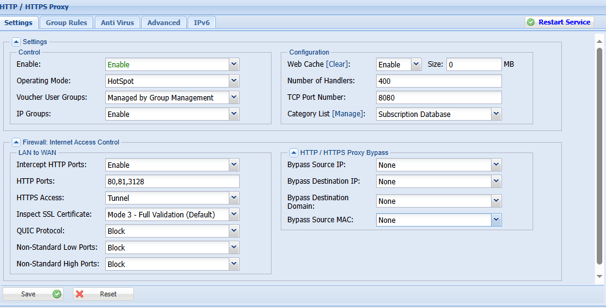

Step 3: In setting > Enable the service and operation mode > Transparent

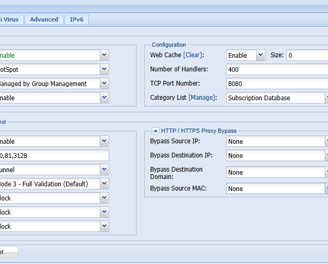

Step 4: Configuration > Web Cache > Enable / Disable and mention the size for store

Step 5: Make Firewall internet access control Select Https Access > Tunnel

Step 6: Http proxy bypass there we can mention the three methods with bypass the source IP and MAC address

Step 7: Bypass destination will help to exclude the destination IP from the web security

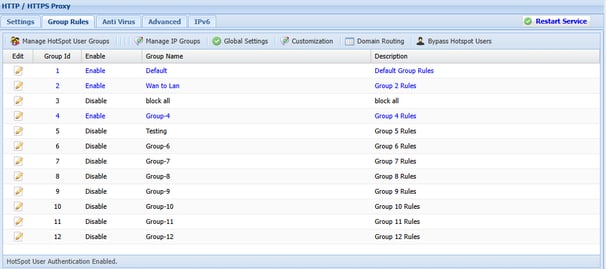

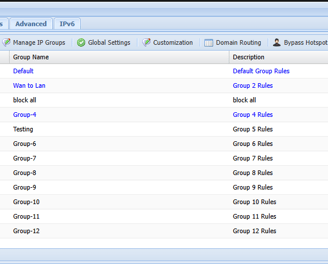

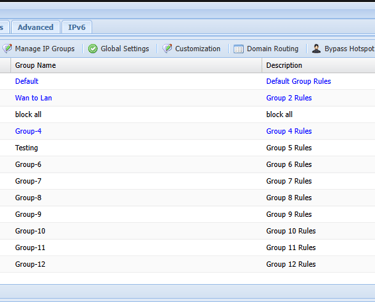

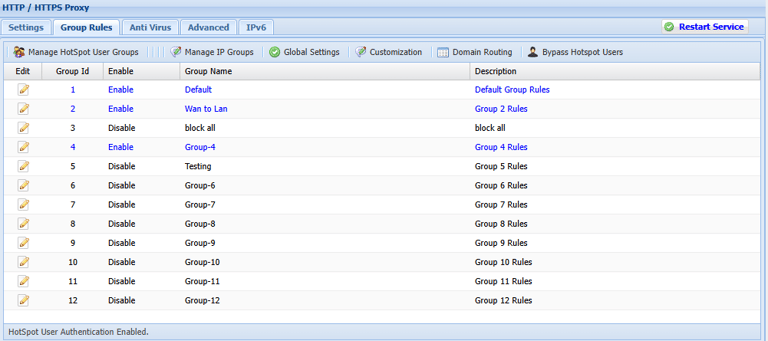

Step 8: Navigate > Group rules

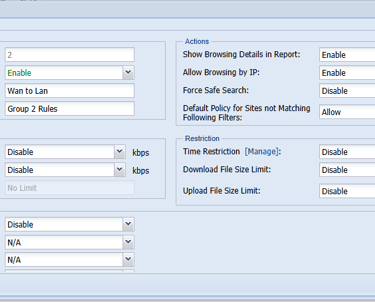

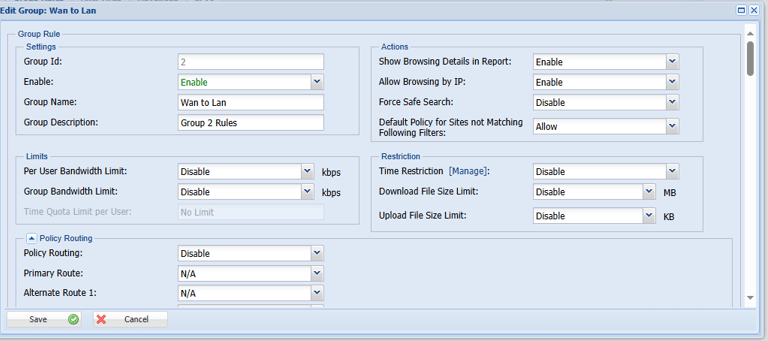

Step 9: If the IP does not assign any group, its user in the Default group -> Edit the Group 2 -> name it

Step 10: in action Tab -> Enable the Show browsing, Enable -> Allow browsing Ip Address, Allow -> Default policy for site not matching

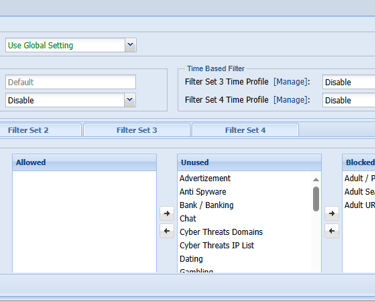

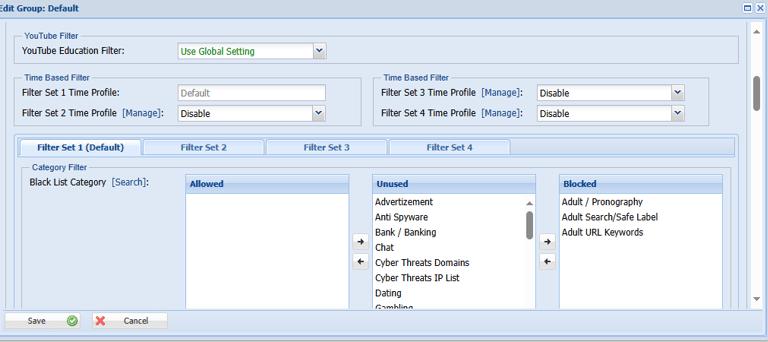

Step 11: Category Filter – > Blacklist Category is updated from tacitine server if blacklist category drags the blocked side related content is blocked

Step 12: Category Filter – > Blacklist category is updated from tacitine server if blacklist category drags the Allowed side related content is Allowed

For Eg: If you want block Adult it is in Adult/Pornography category move that category blocked side the Adult will block

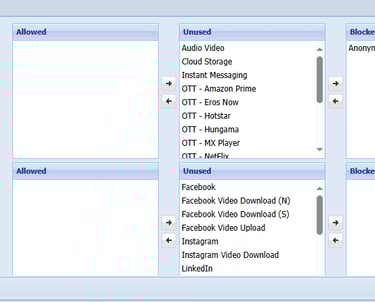

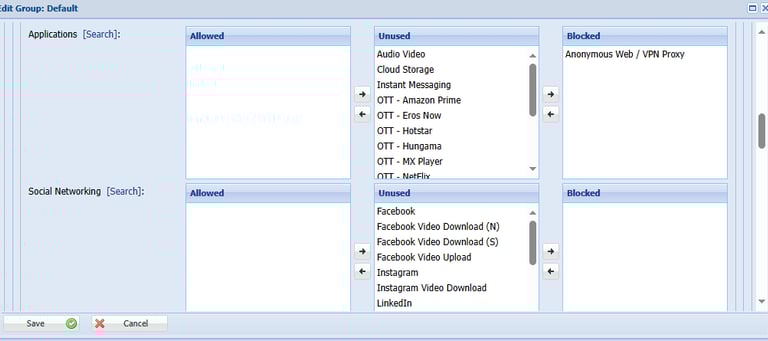

Step 13: Category Filter – > Applications is updated from tacitine server if Applications drag the blocked side related content is blocked

Step 14: Category Filter – > Social Networking is updated from tacitine server if blacklist category drags the Allowed side related content is Allowed

For Eg: If you want block OTT Platform it is in move that category blocked side the OTT Selected Sides will block

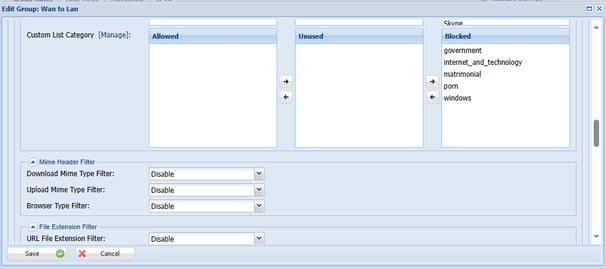

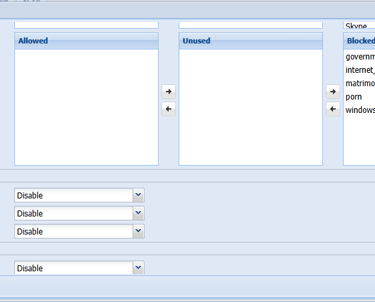

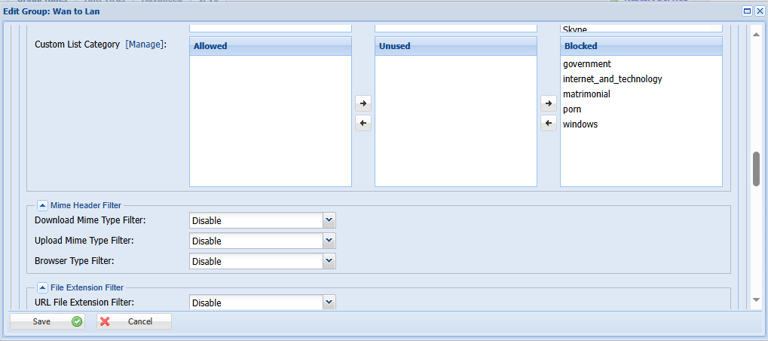

Step 15: Custom List Category we can create our own database list on that we can black or allowed as same as the Blacklist category

For Eg: in your organization in the bank category want to allow only hdfc bank and Indian bank to access we can create the category

Note: Mime Type Filter restrict in Settings HTTPs Access > intercept mode only

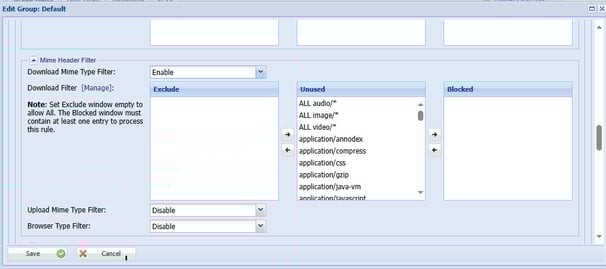

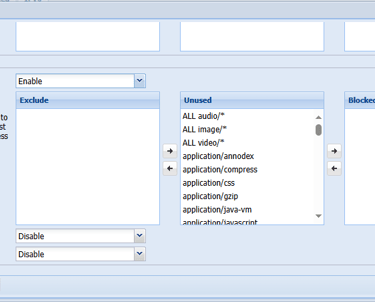

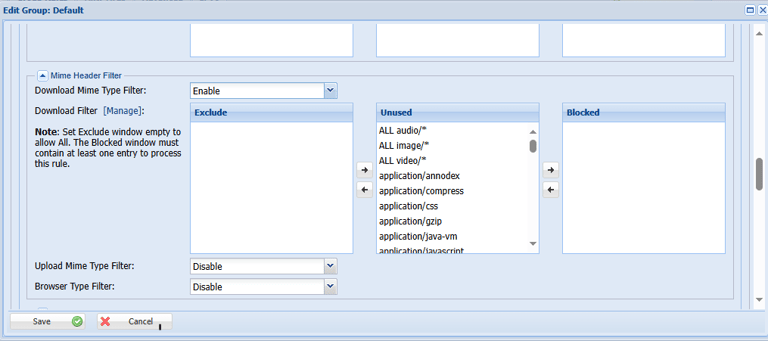

Step 16: Mime-type filter we can be able to block the application, image types like Png, jpeg and video category as same we can allow or blocked we configure it

Note: File Type Filter restrict in Settings HTTPs Access > intercept mode only

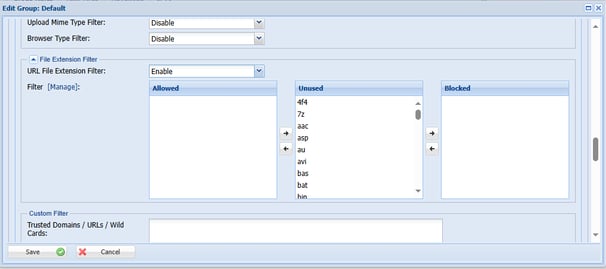

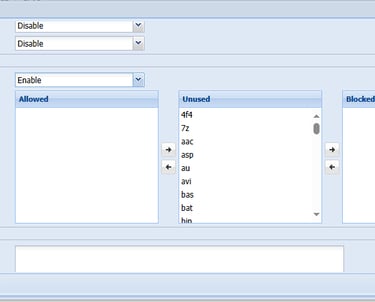

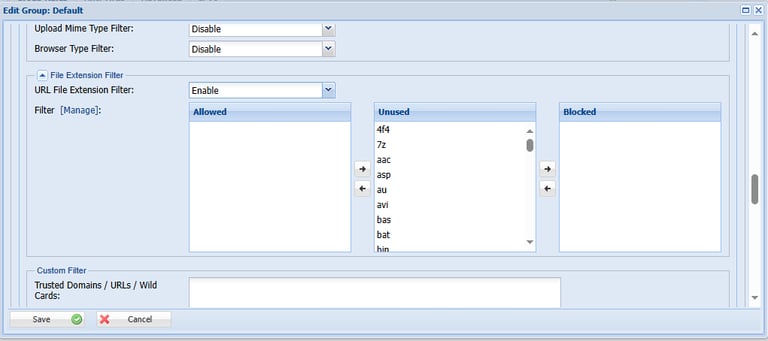

Step 17: File extension filters we can be able to block the URL file extension like 7z, Zip, Php, Avi we can Drag allowed or blocked we configure it

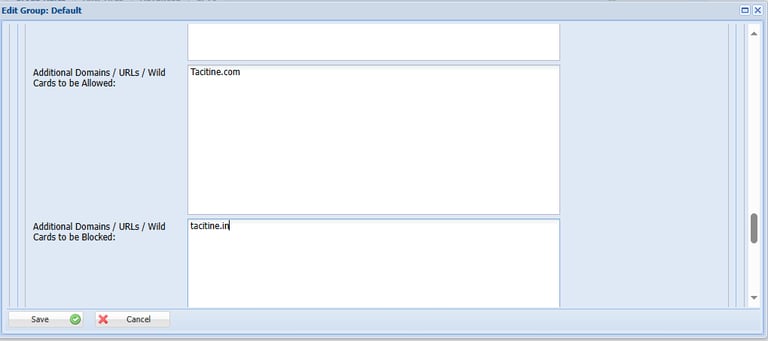

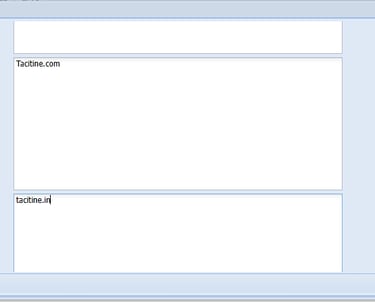

Step 18: we can custom single website want to block or allowed want to mention the website.

for Eg: we can give only domain and extension like Tacitine.com

Step 19: After editing the group -> Save Configuration

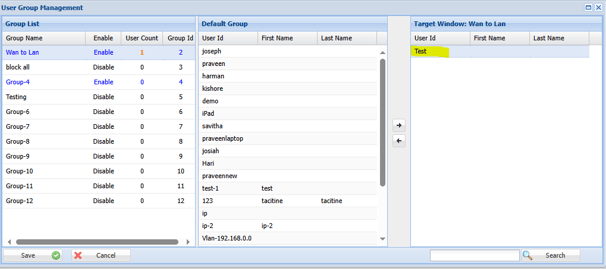

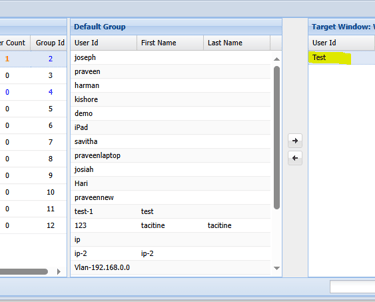

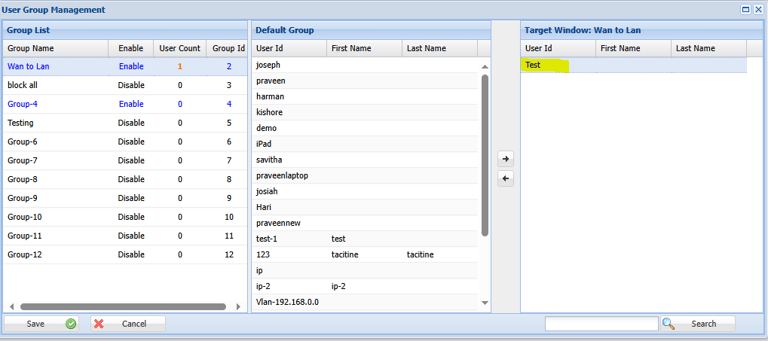

Step 20: In group rule top we can see the Manage User group -> select the group name -> Target group window appears Right side drag the user to a selected group

For Eg : we can give User Like Test

Step 21: Save > Restart Service
