How to Configure the Zone Policy

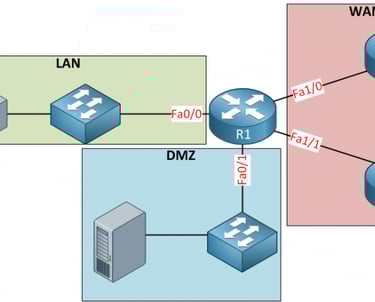

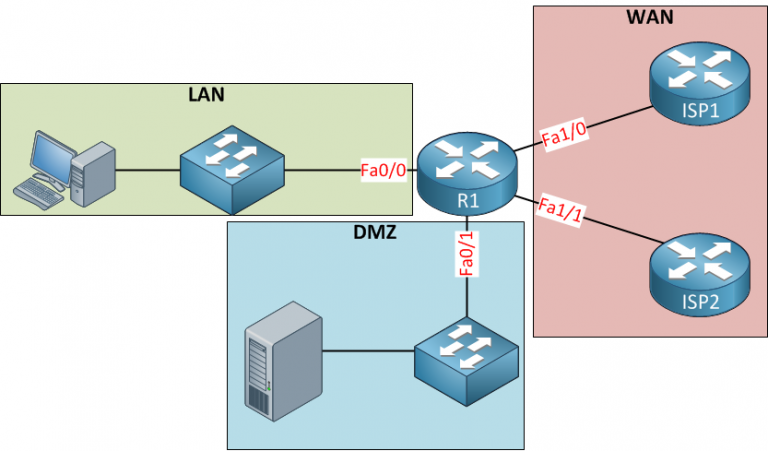

The zones are separated by perimeters (Zone Interface Points) implemented through security and network devices. Zoning is a logical design approach used to control and restrict access and data communication flows only to those components and users as per security policy.

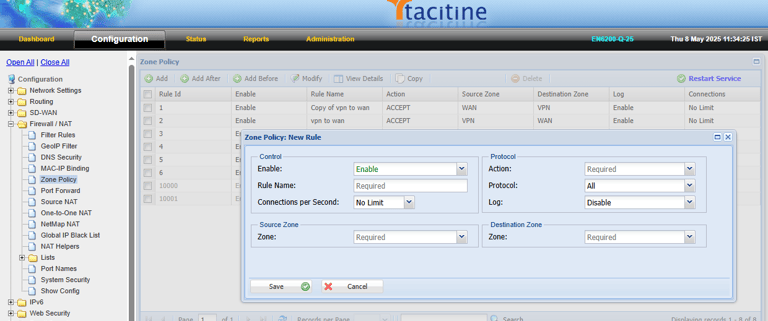

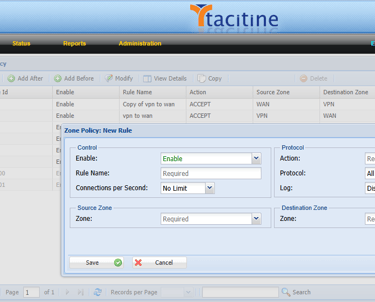

Step 2: Click the Configuration > Firewall /NAT >Zone Policy>ADD

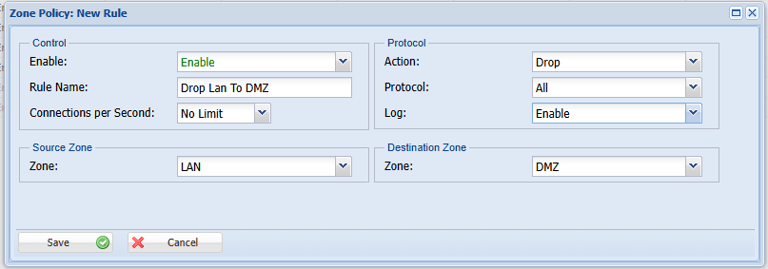

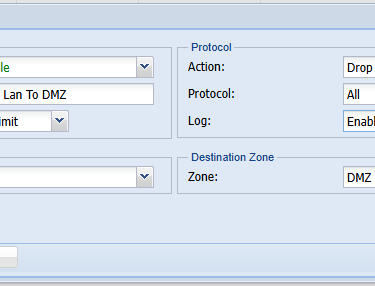

Step 3: Mention the Protocol depends on you need here we going to select Protocol > All and we made the action > DROP the packet flow

Step 1: Login to the Tacitine. (If you are configuring the Tacitine for the first time, the default Lan IP is https://192.168.100.1:4433)and default username: admin & Password: admin99

Step 4: Select the Source zone from where the pack is starting, we select the Zone LAN

Step 5: Select the Destination zone from where the pack is Reach, we select the Zone DMZ

Step 6: Save > Restart Service
