How To Configure the User Hotspot Plans

Note: For the First Time We Need to Create the Plan For users

Step 1: Login to the Tacitine. (If you are configuring the Tacitine for the first time, the default Lan IP is https://192.168.100.1:4433) and default username: admin & Password: admin99

Step 2: Select the Configuration > User Hotspot tab.

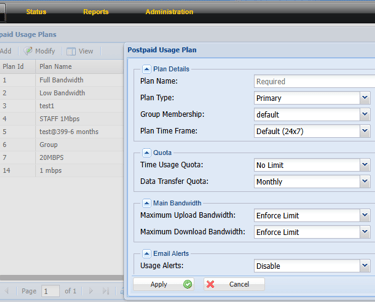

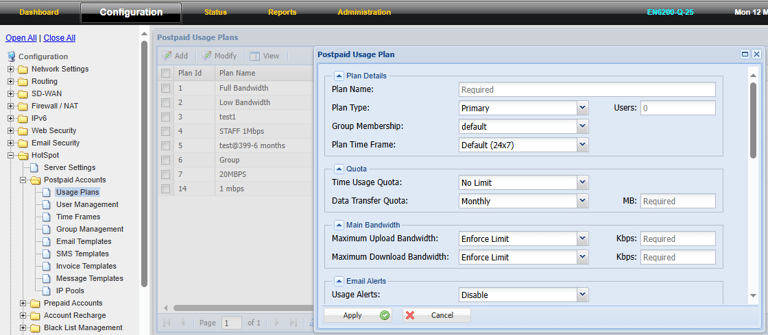

Step 3: Select the Postpaid > Usage Plans > Add

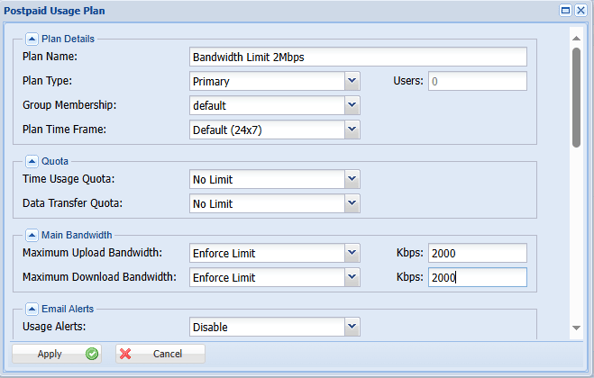

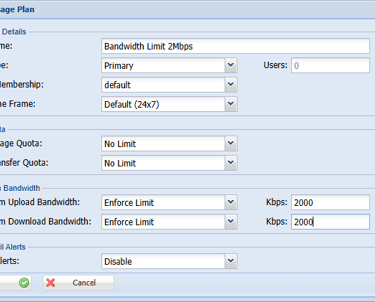

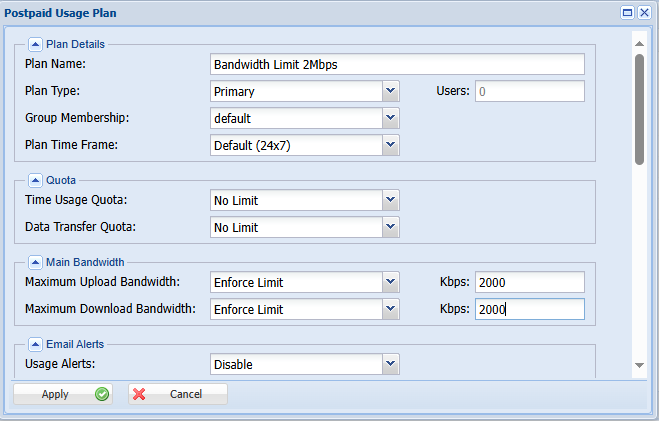

Step 4: Mention the Plan Name for Your Reference. (Bandwidth Limit 2Mbps)

Step 5: Mention the Plan Type as Primary.

Step 6: Mention the Group Membership of the Plan. Egg: Default.

Step 7: Mention the Plan Time Frame. Egg: Default (24*7)

Step 8: Mention the Time Usage Quota. Egg: NO Limit

Step 9: Mention the Data Usage Quota. Egg: No Limit

Step 10: Mention the Upload and Download Bandwidth. Egg: 1024Kbps

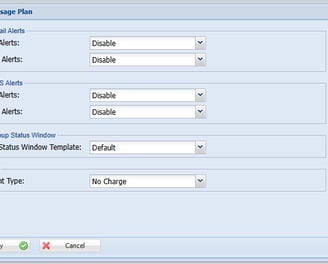

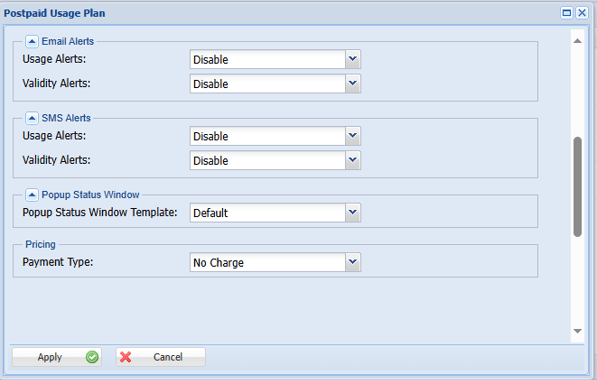

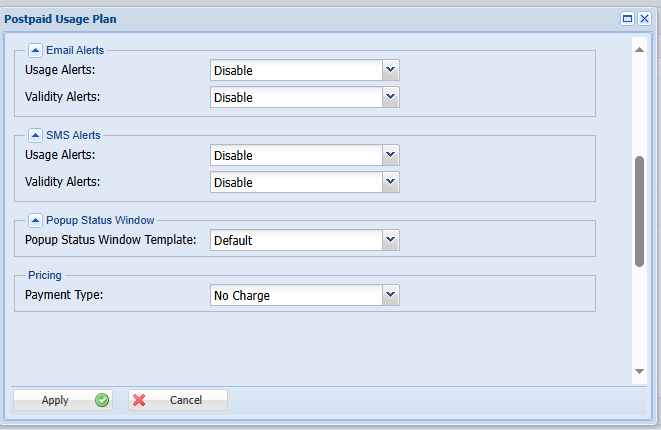

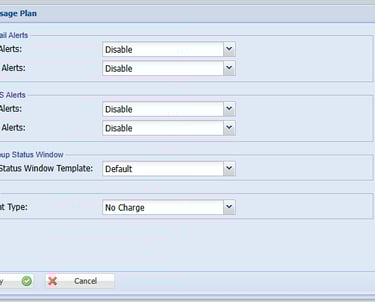

Step 11: Mention the Popup status Window. Egg: Default

Step 12: Click Apply to Complete the Plan Creation.

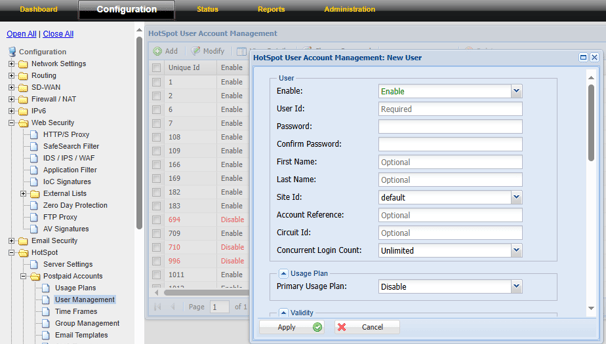

Step 13: Now Goto Configuration > User Hotspot tab.

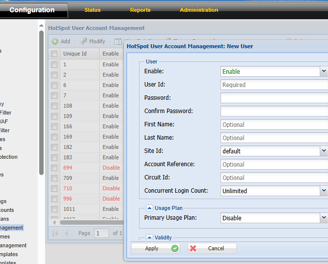

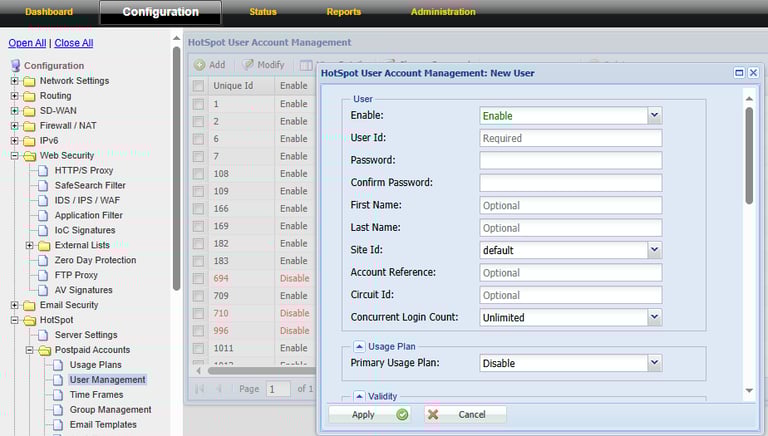

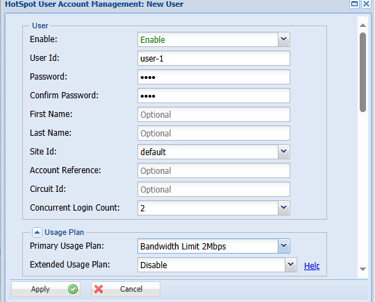

Step 14: Click the Postpaid > User Management > Add

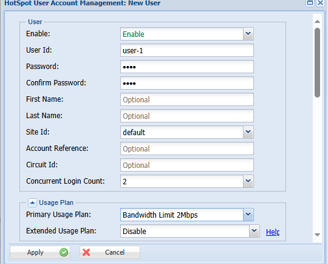

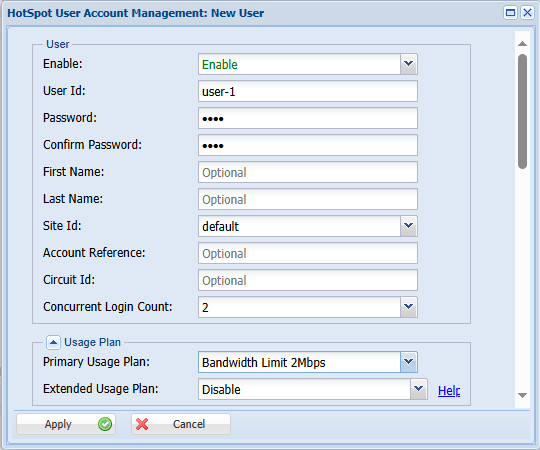

Step 15: Mention the User id and Password for Login

Step 16: Mention the first name and Lastname for your Reference. (Optional)

Step 17: Mention the Account Reference, Site id, circuit id. (Optional)

Step 18: Mention the Concurrent Login Count. (if we mention 2 it will allow 2 devices to access the internet at the time)

Step 19: Mention the Primary Usage Plan already we have created above otherwise disable it. (Egg: Bandwidth Limit 2Mbps)

Step 20: Mention the Validity of the User. (Egg: Unlimited)

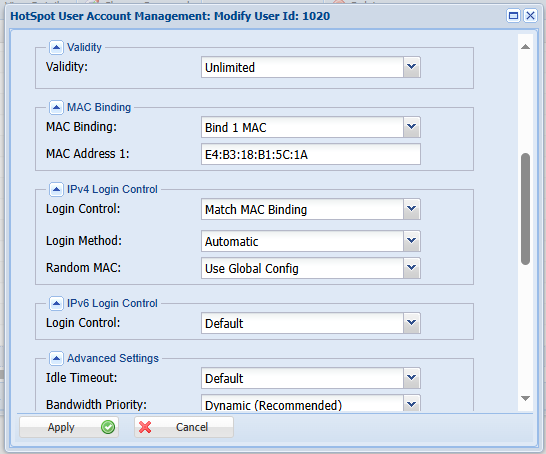

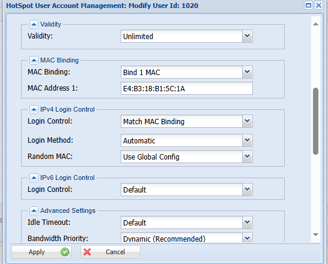

Step 21: If you want to bind mac address it will allow up to 5 mac-address per user. Once mac address is bind next time that user was login automatically.

Step 22: Mention the Login control Match Mac Binding and Set Login method as Automatic. Otherwise set default.

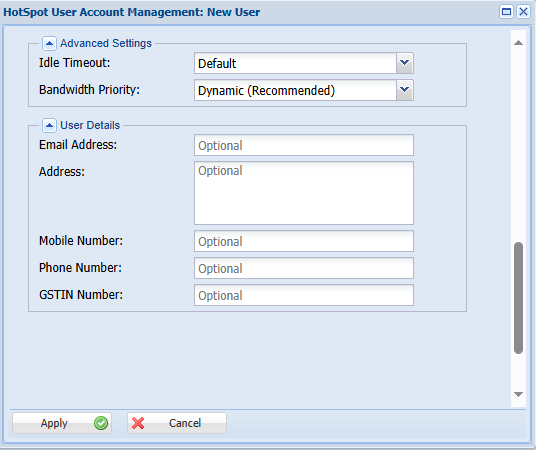

Step 23: Mention the idle timeout as Default.

Step 24: Mention the bandwidth priority as Dynamic.

Step 25: Finally, Give the User details for your Reference. (Email address, Address, Mobile no)

Step 26: Click Apply to save the User Successfully. (Then Connect to the internet give the credential)
