How to configure the SSL Client in Linux

Step 1: Login to the Tacitine. (If you are configuring the Tacitine for the first time, the default Lan IP is https://192.168.100.1:4433)and default username: admin & Password: admin99

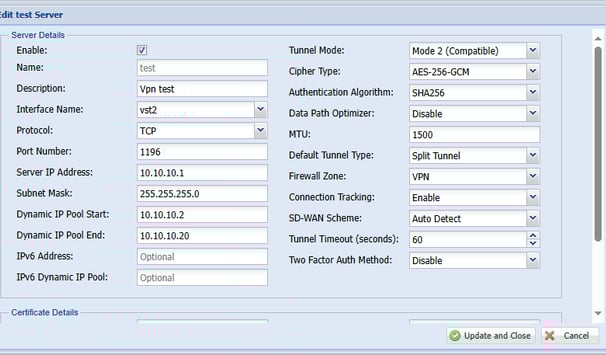

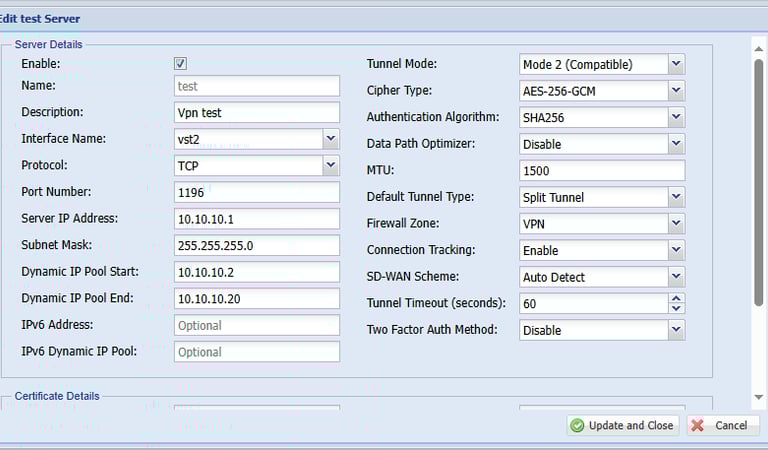

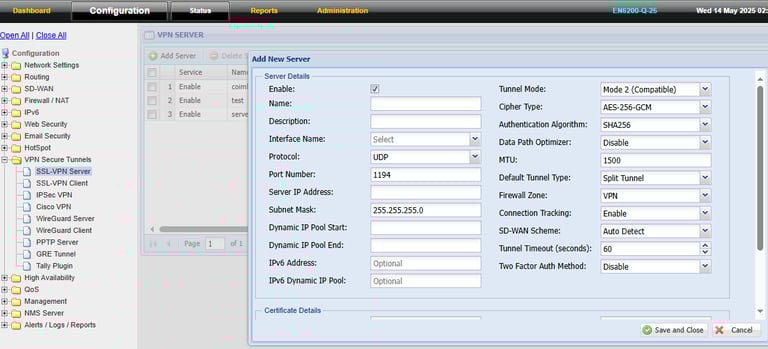

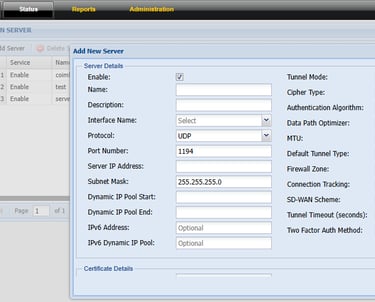

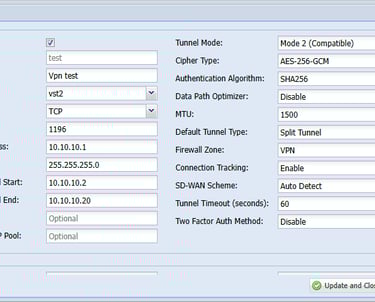

Step 2: Click the Configuration > VPN > SSL-VPN Server > Add > enable the services Provide the descriptions

Step 3: Mention the interface name for e.g.: VST1

Step 4: Select the protocol where the VPN access via UDP /TCP and provide the port number For Eg default port number 1196

Step 5: Provide the server IP and subnet mask and dynamic start IP and end IP
Note: it should be different from your local IP is given like 10.10.10.1 or 60.60.60.1

Step 6: Select the Cipher Type default use: AES-128-CBC

Step 7: Select the Authentication algorithm Default: SHA1

Step 8: Mention the MTU value Default value: 1500

Step 9: Select tunnel Type default value: split type (it only sends the VPN traffic to Firewall) Full tunnel (all traffic send it through to Firewall)

Step10: enter all certificate details like email, country, etc and organization name

Step 11: Click Save > Restart Services

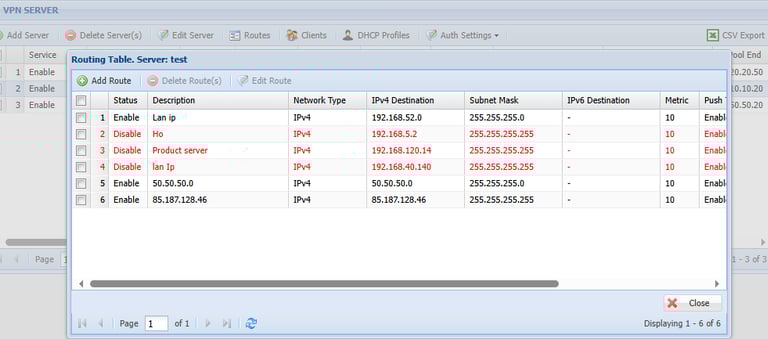

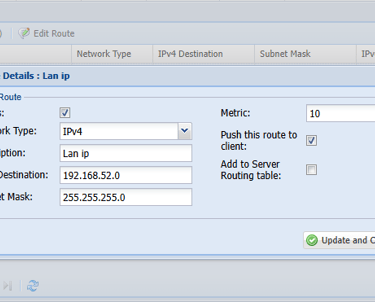

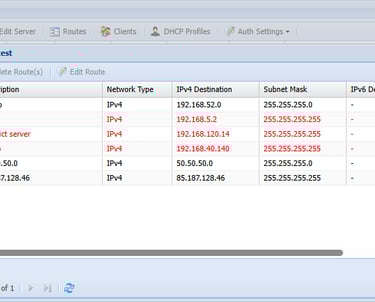

Step 12: Select the Create the Server and Click the Router > Add Route

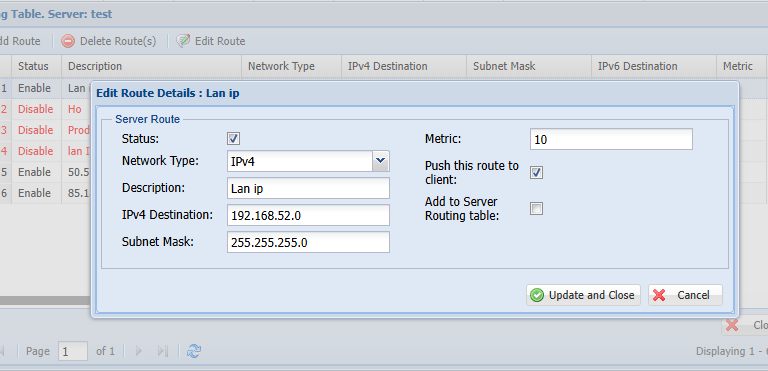

Step 13: Mention the Description and Destination IP (Network IP and subnet mask) Note: this Lan IP address of the firewall to access through VPN Client

Step 14: Select the Push this route to the client

Step 15: Click Update and Close

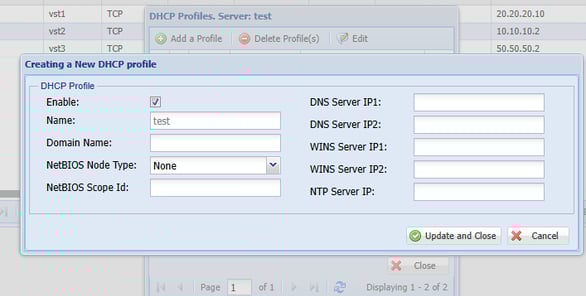

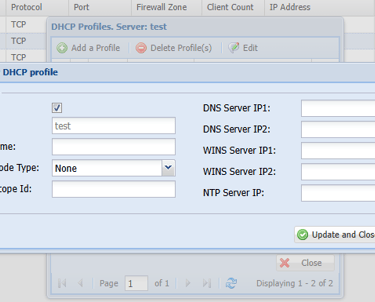

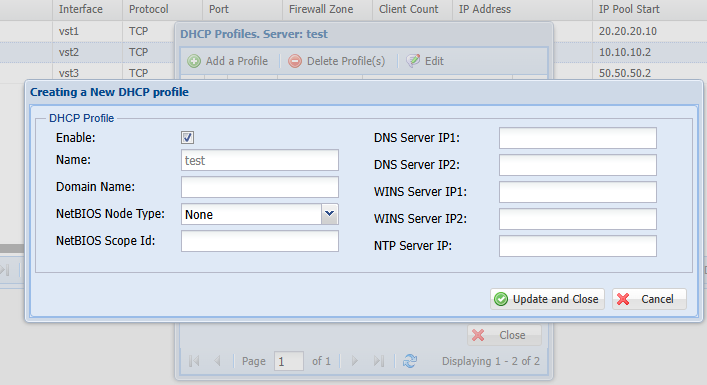

Step 16: Select the Create the Server and Click the DHCP Profile

Step 17: Mention the Name of the Profile

Step 18: Click Update and Close

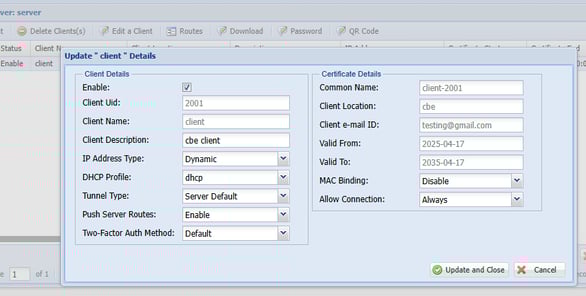

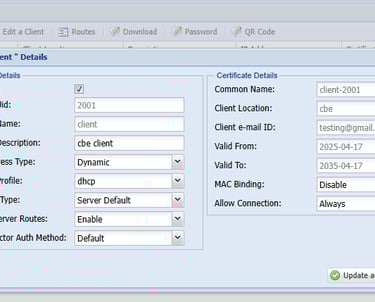

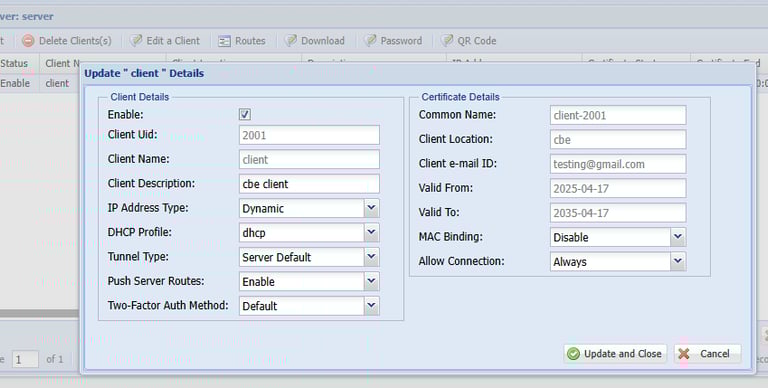

Step 19: Select the Create the Server and Click the Clients > Add client

Step 20: Mention the Client Name Address type: Default and select DHCP Profile and tunnel Type make it as server Default

Step 21: Mention the Certificate details like location, email id and Save

Step 22: Click Update and Close

Procedure Of Install Linux

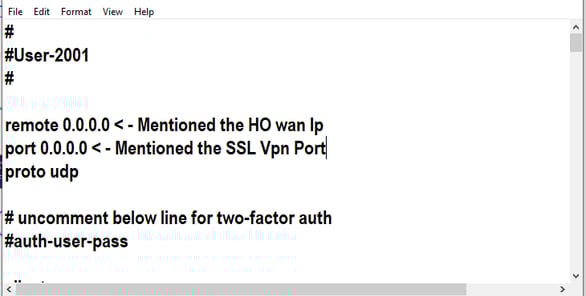

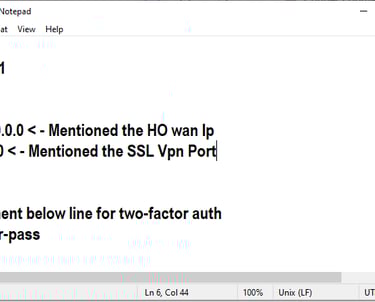

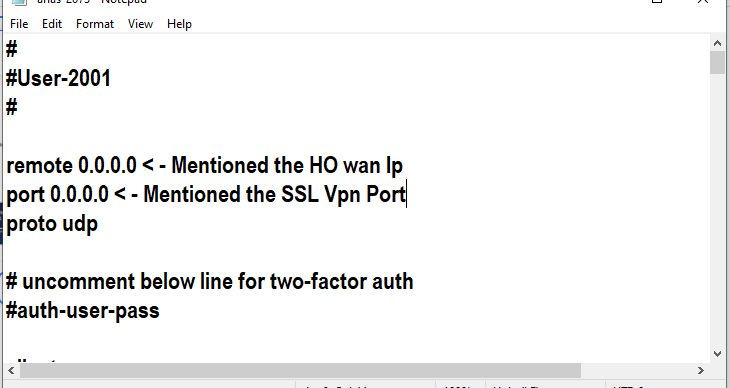

Note: From version 18.4 onward we can see the Ovpn file in zip folder extract it and open the ovpn file in notepad we can see the remote IP is mentioned as 0.0.0.0 there mention the wan IP and port also show 0000 their mention port number mention in the SSL server creation time

Step 1: Refer to How to configure the SSL-VPN server there we can see the client creation

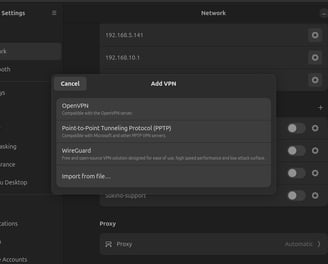

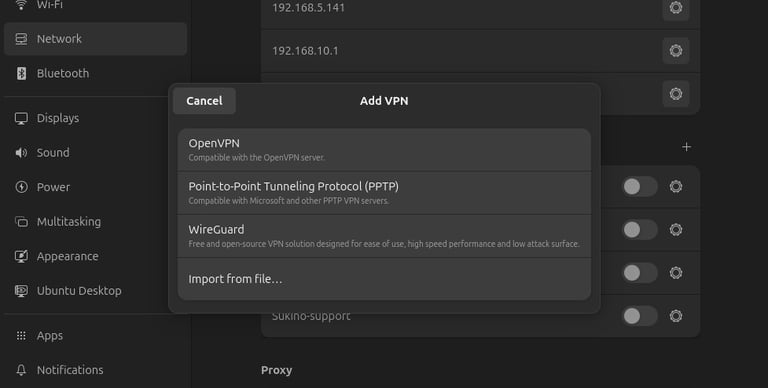

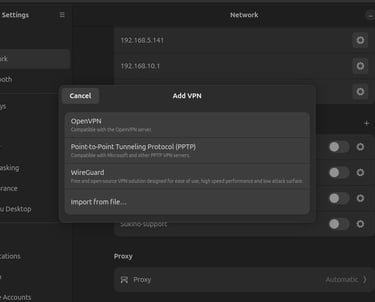

Step 2: Goto -> Settings -> Network -> Add Vpn -> Click Import from File

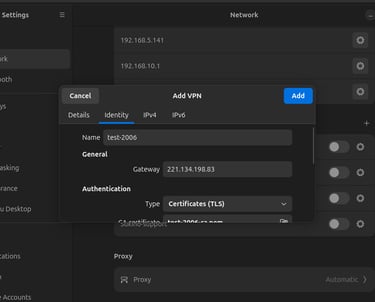

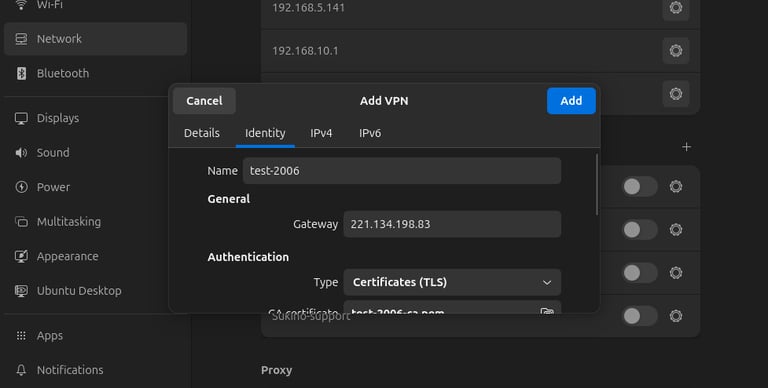

Step 3: Click Identity ->Gateway Mentioned Ho Wan Ip

Note: Authentication File Already Import Previous Step

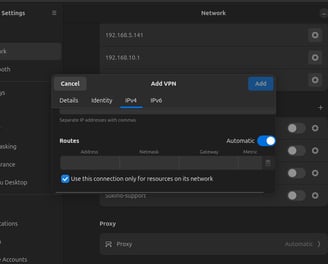

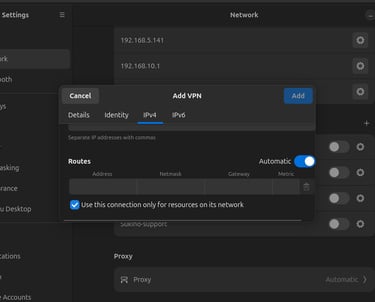

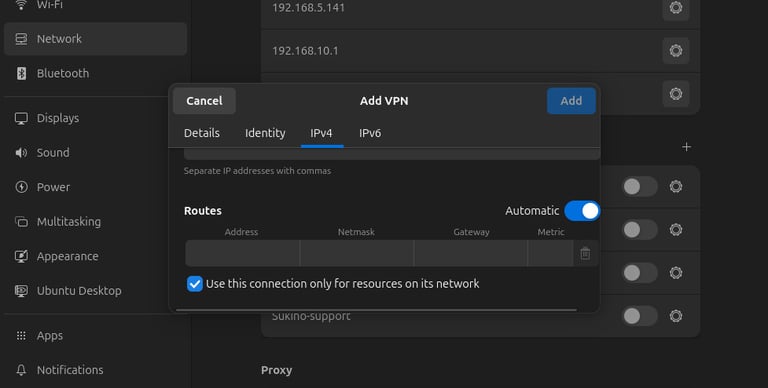

Step 4: Click to Ipv4 Under the Routes Select use This Connection Only for Resources on this Network

Step 5: Select Add the Vpn Configuration Now you can Try to Connect

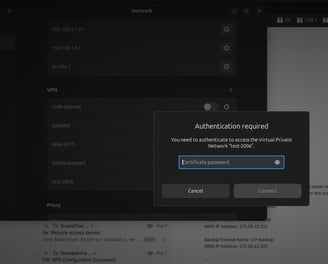

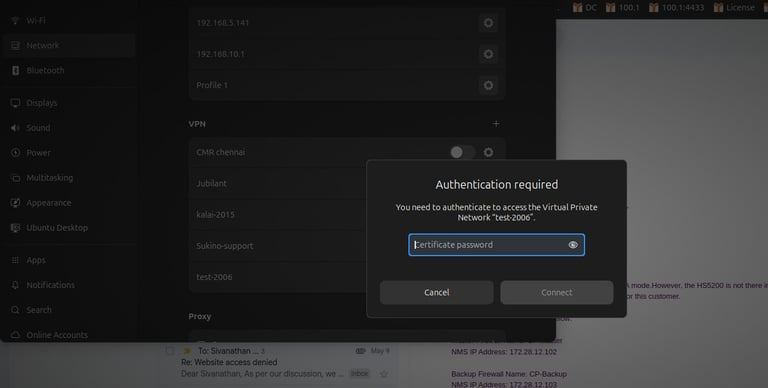

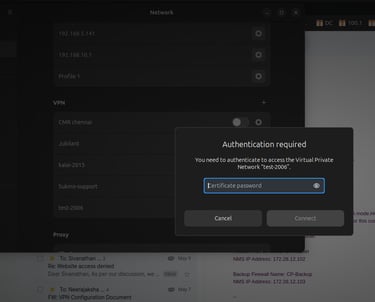

Step 6: Try to Connect Required Authentication Please Put Client Private Key

Step 7: Finally Switch on the connection button to connect your VPN client. Now you have connected to your HO network.
