How to configure the Lan

A local area network (LAN) is a group of computers and associated devices that share a common communications line or wireless link to a server. Typically, a LAN encompasses computers and peripherals connected to a server within a distinct geographic area such as an office or a commercial establishment. Computers and other mobile devices use a LAN connection to share resources such as a printer or network storage

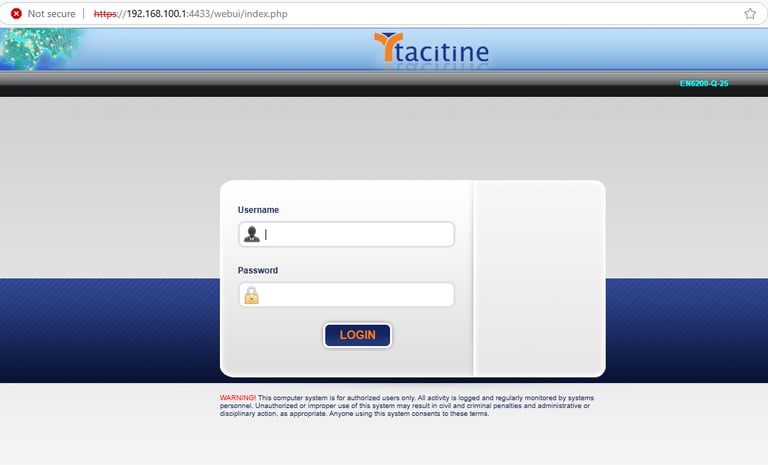

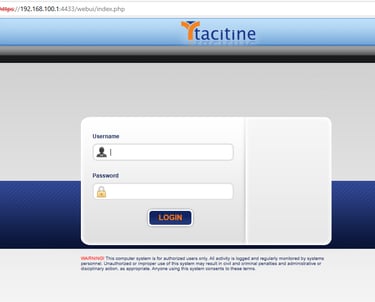

Step 1: Login to the Tacitine. (If you are configuring the Tacitine for the first time, the default Lan IP is https://192.168.100.1:4433) and default username: admin & Password: admin99

Step 2: Click the Configuration > Network Setting tab.

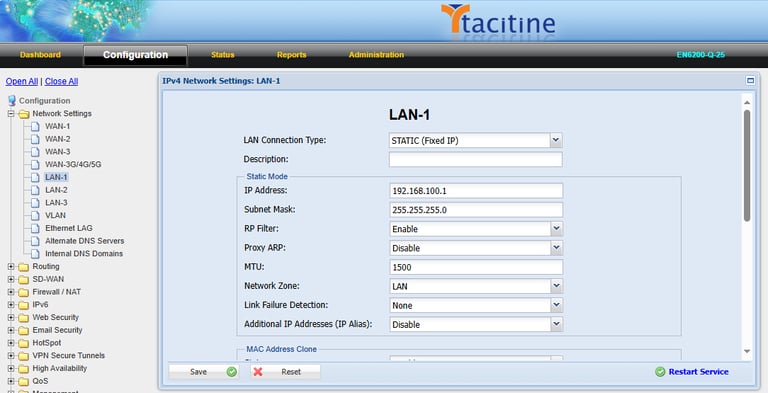

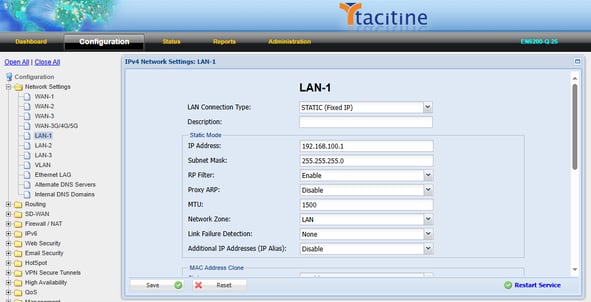

Step 3: Click the Network Zone > LAN

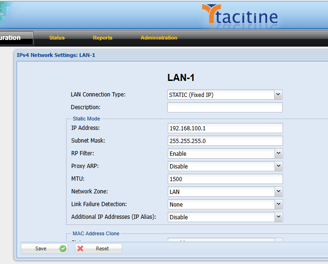

Step 4: Provide your Local Area network IP in IP address and gateway

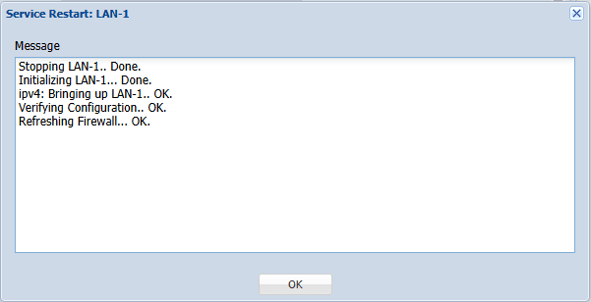

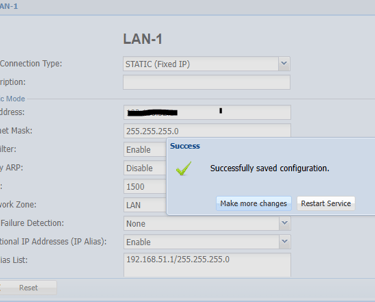

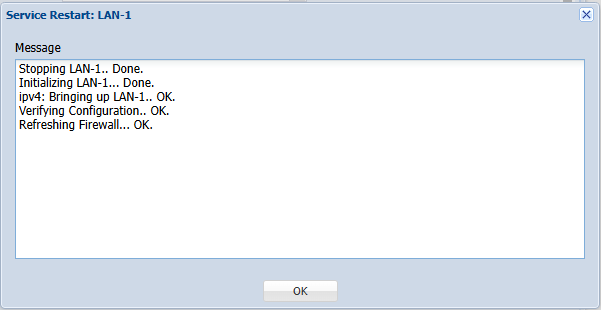

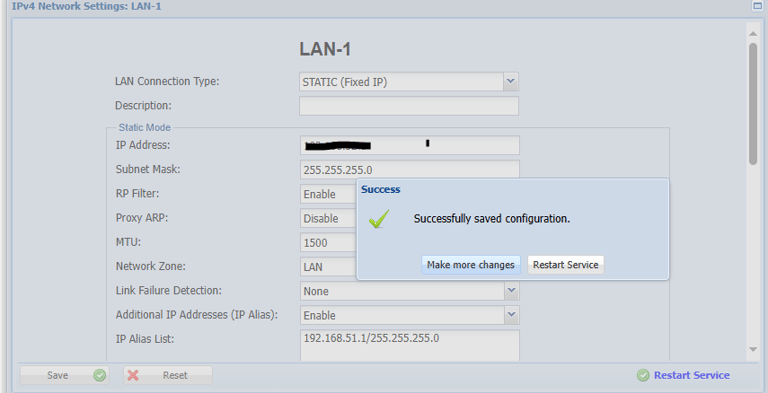

Step 5: Navigate save > Restart Service
