How to Configure the Ip sec Site to Site VPN

Step 1: Login to the Tacitine. (If you are configuring the Tacitine for the first time, the default Lan IP is https://192.168.100.1:4433)and default username: admin & Password: admin99

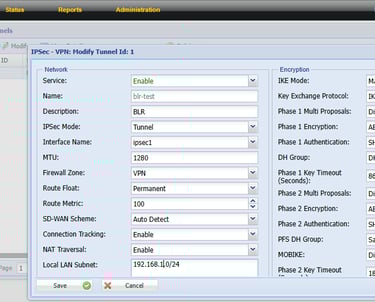

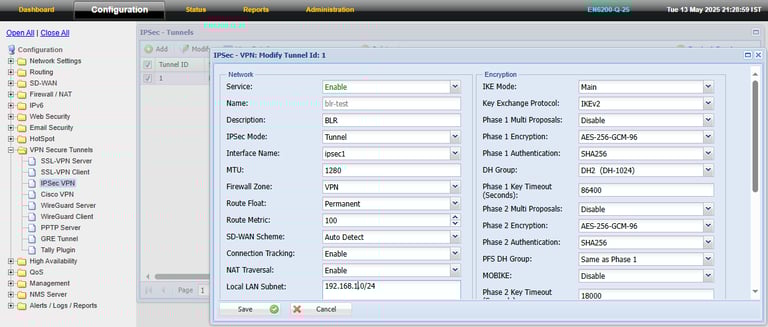

Step 2: Navigate Configuration > Vpn Secure Tunnel > IPSEC VPN > Add

Step 3: Mention the IPsec Mode as the main

When configuring a Site-to-Site VPN tunnel in EN6200 Enhanced firmware using the Main Mode both the Tacitine appliances and another firewall (Site A and Site B) must have a routable Static WAN IP address

Step 4: Mention the local IP want to make a route to branch as same in the Remote side

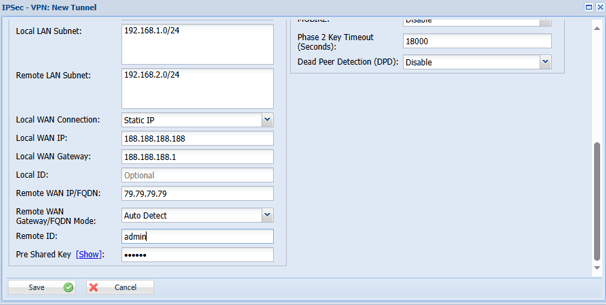

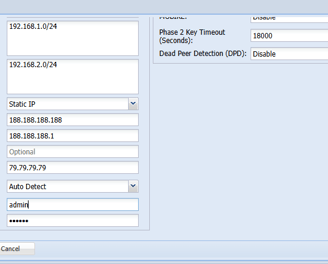

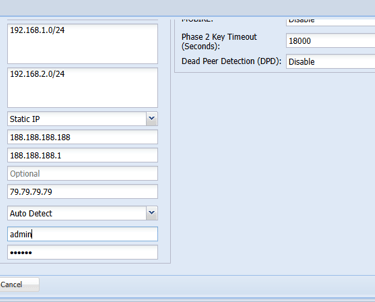

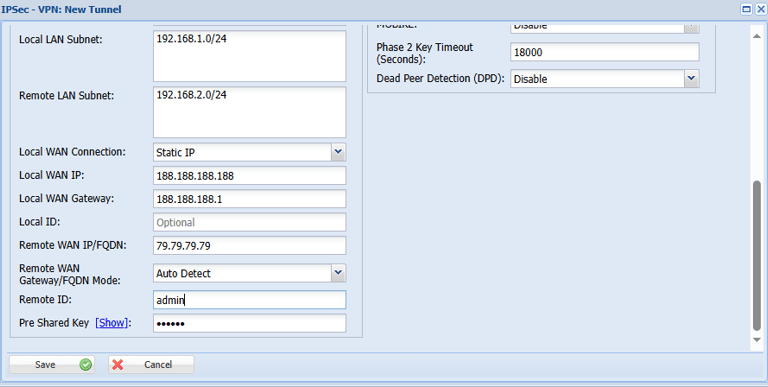

Step 5: Disable the Nat Traversal and select the Local wan connection as the Static Ip and mention the Wan IP and Gateway Local id is the optional

Step 6: As same, the Remote side wan IP provide in the Text box and Gateway detection in remote wan IP option there is make as auto detect/mention the gateway

Step 7: Generate the Pre share key and provide to the branch side configuration both same same

Step 8: IKE mode make it as the main and Key Exchange mode as Auto and create the Phase 1 and Phase 2 configure as same for both branch and head office and Enable the Dead Per detection to enable anyone side is sufficient

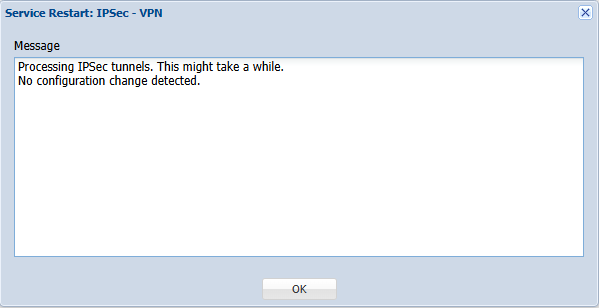

Step 9: Click Save > Restart Service
