How to configure the DHCP

Dynamic Host Configuration Protocol (DHCP) is a client/server protocol that automatically provides an Internet Protocol (IP) host with its IP address and other related configuration information such as the subnet mask and default gateway.

Step 1: Login to the Tacitine. (If you are configuring the Tacitine for the first time, the default Lan IP is https://192.168.100.1:4433)and default username: admin & Password: admin99

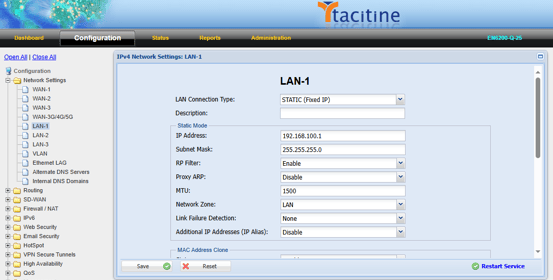

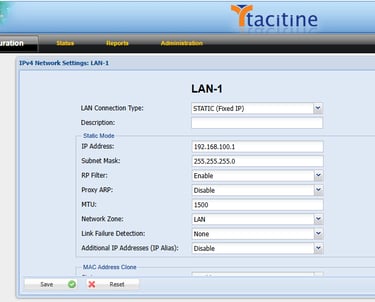

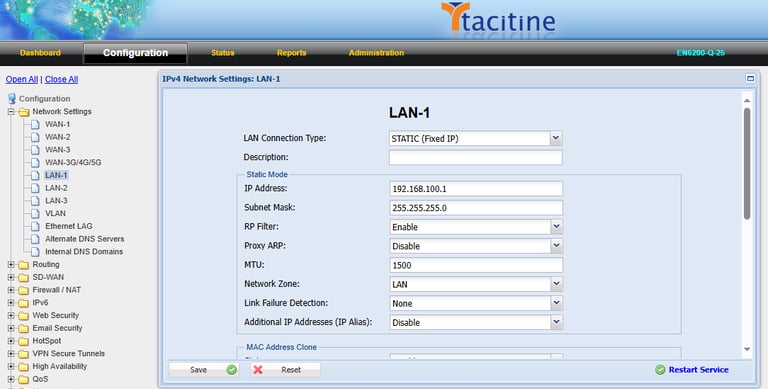

Step 2: Click the Configuration > Network Setting tab.

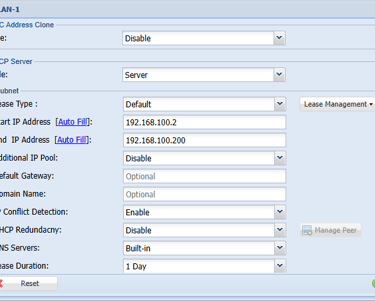

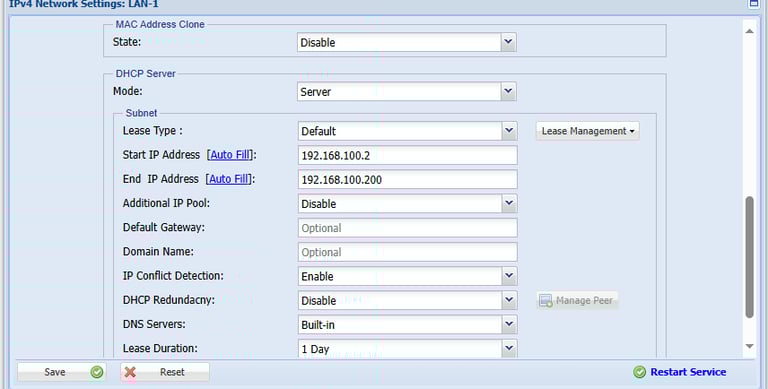

Step 3: Below Lan setting there is DHCP mode> Server> Enable

Step 4: Lease type Default and fill the start IP and end IP want to publish

Step 5: Lease management will help to publish the.

A, Static Lease > it will help to assign the static IP for specific Mac address NOTE: Static IP not in range of DHCP Pool address,

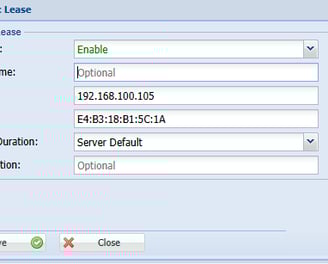

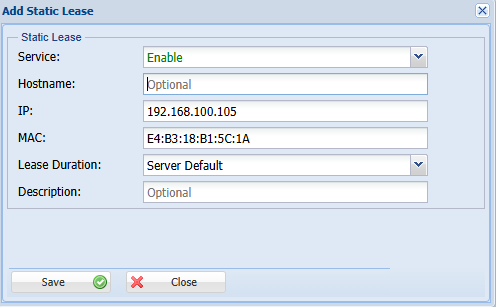

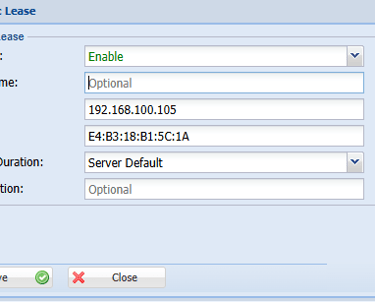

Step 6: Lease Management > Manage Static Lease > open Pop-up windows > Add > provide the Hostname, Ip & Mac Details

Step 7: Click Save > Restart Services

Step 8: Lease management it will help to publish the.

b, Manage Blacklist – > it helps to block the mac it will not release the IP from this DHCP server

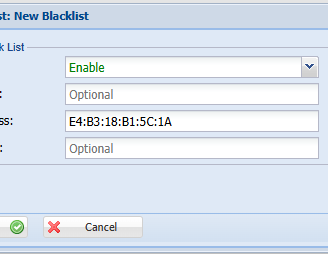

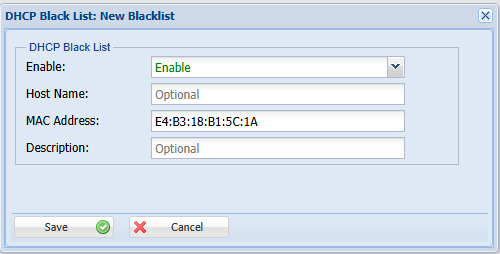

Step 9: Lease Management > Manage Blacklist > open Pop-up windows > Add > provide the Hostname & Mac Details

Step 10: Click Save > Restart Services
