How to Configure the BGP Routing

This project aims to develop a user-friendly mobile application that enhances productivity and organization. Through intuitive design and seamless functionality, users can efficiently manage tasks, set reminders, and collaborate with team members.

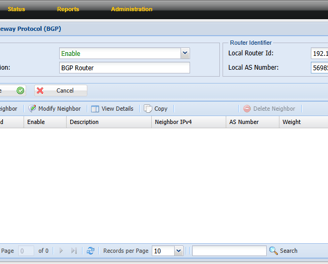

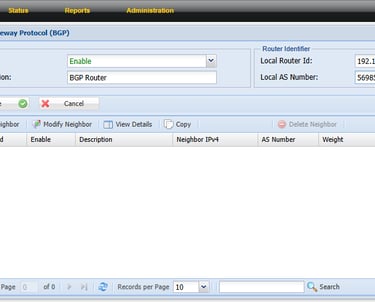

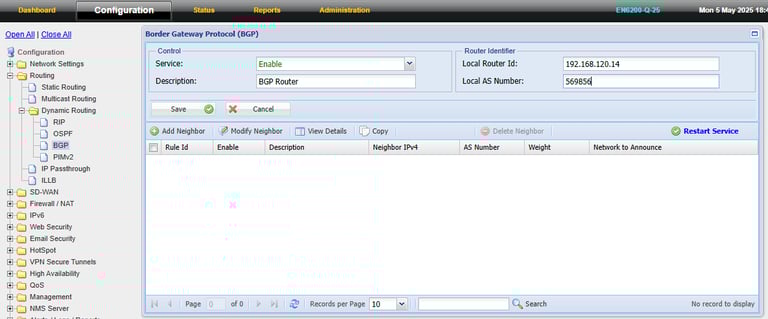

Step 2: Click the Configuration > Routing >Dynamic Routing BGP Routing > Enable

Step 3: In Router Identifier Local Router Id: wan IP of ISP where the BGP public and your AS no provide by from ARNIC > Save

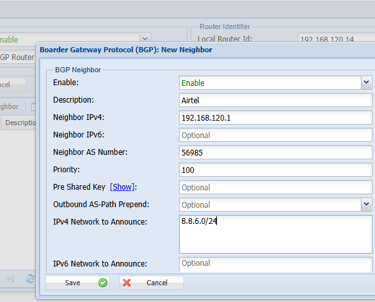

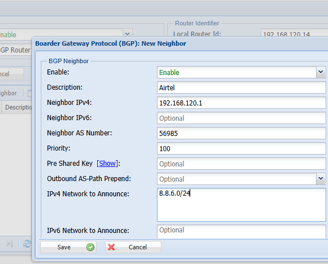

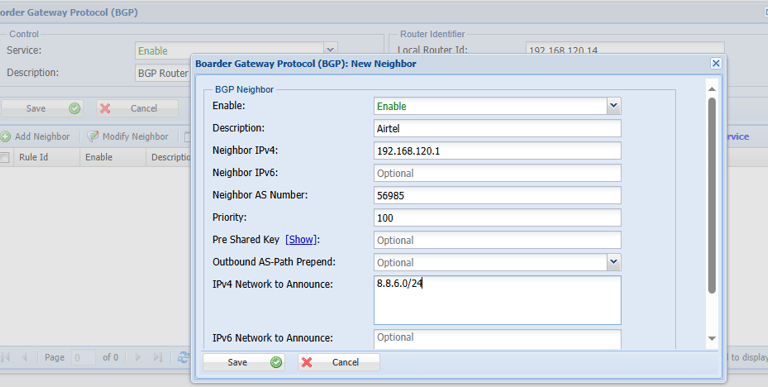

Step 4: Navigate > Add Neighbour >enable mention the Description and enter Neighbour Ip > the BGP publish isp provider gateway and there AS no.

Step 5: Neighbour to announce mention the network address is provided by APNIC

Step 6: Save > Restart Services

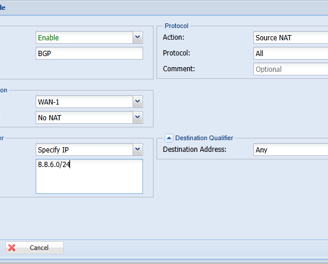

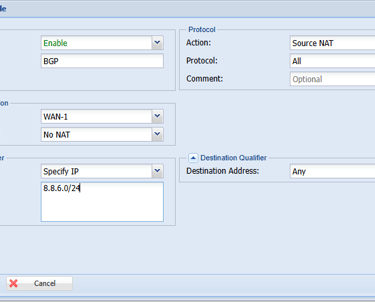

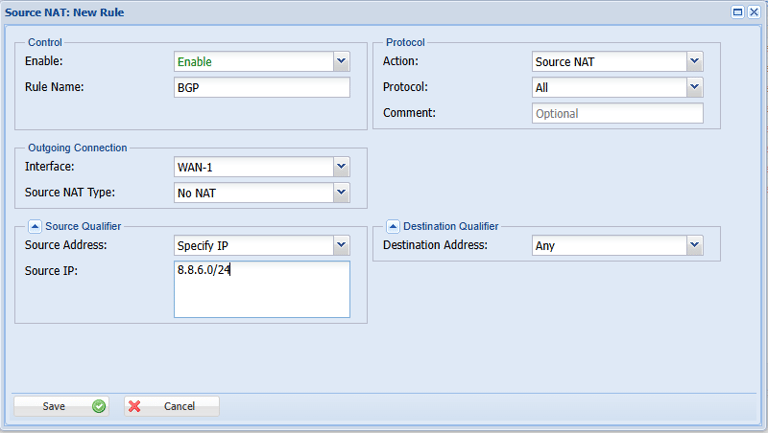

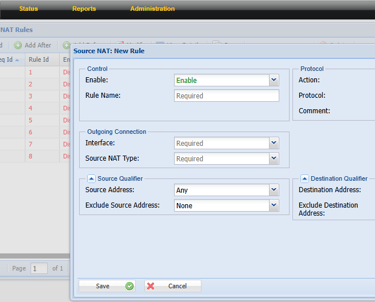

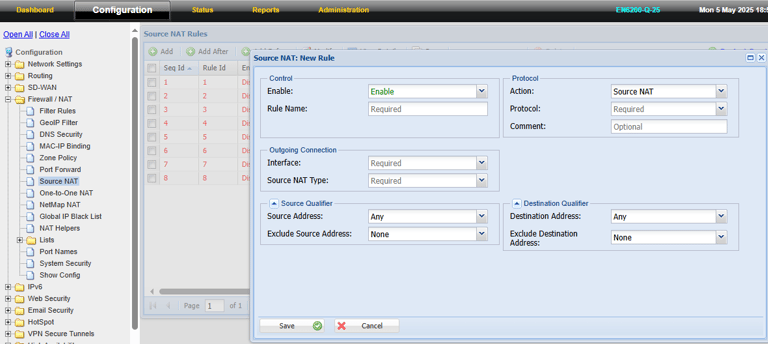

Step 7: Configuration > Source NAT > Add

Step 8: In Outgoing Interface select the BGP to publish interface and make Nat type as NONAT

Step 9: Source Qualifier >source address mention in the BGP configuration network to announce

Step 10: In Protocol Tab Action > Source NAT and protocol > All

Step 11: Destination address mention as Any

Step 12: Save > Restart Services

Step 1: Login to the Tacitine. (If you are configuring the Tacitine for the first time, the default Lan IP is https://192.168.100.1:4433) and default username: admin & Password: admin99
